PROline applications

PROline ultrasonic testing systems solve non-destructive testing tasks in a wide range of industries. Below we present some of our PROline standard and customized ultrasonic solutions – mechanized or automated in immersion or bubbler technique.

Request inspection solution

umfassende Analyse

Inspection systems based on the PROlineUSB ultrasonic inspection device

The PROlineUSB ultrasonic inspection device flexibly masters complex industrial applications and can be optimally integrated into mechanized or fully automated single or multi-axis inspection systems. On request, VOGT Ultrasonics designs customer-specific ultrasonic inspection systems according to a modular principle for cost-conscious component inspection. The inspection systems guarantee process-safe and fast inspection with very high inspection quality for 24/7 operation. They are suitable for Industry 4.0 and are used for non-destructive material testing in the aerospace, automotive and metalworking industry.

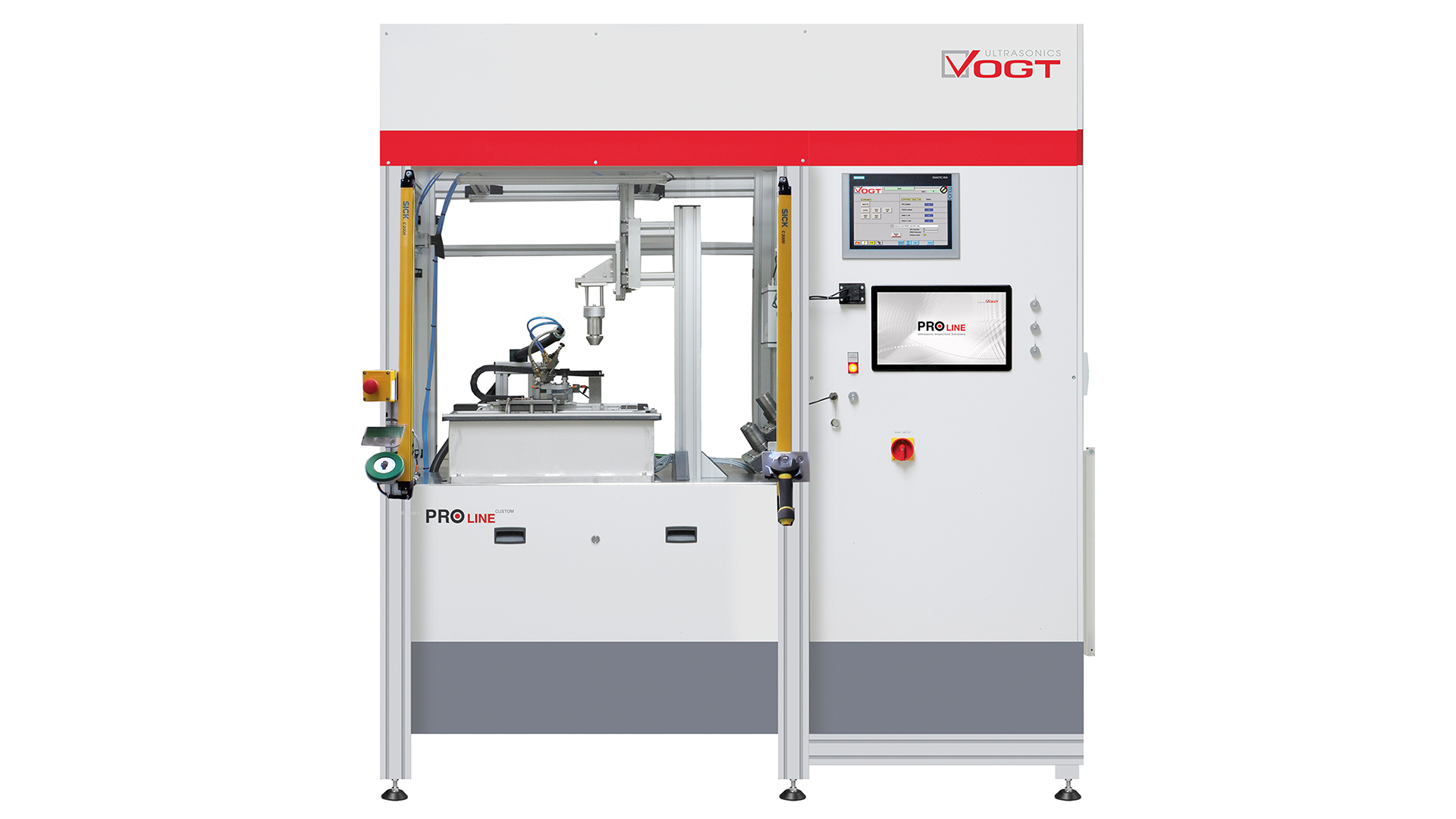

Differentials Inline

Inspection system for rotationally symmetrical, water-sensitive components. By using the bubbler technology, the ultrasonic testing is completely immersion-free. Different components can be tested quickly and flexibly using adapters.
0098981_PROline_Pruefsystem_OEM01
Play Video

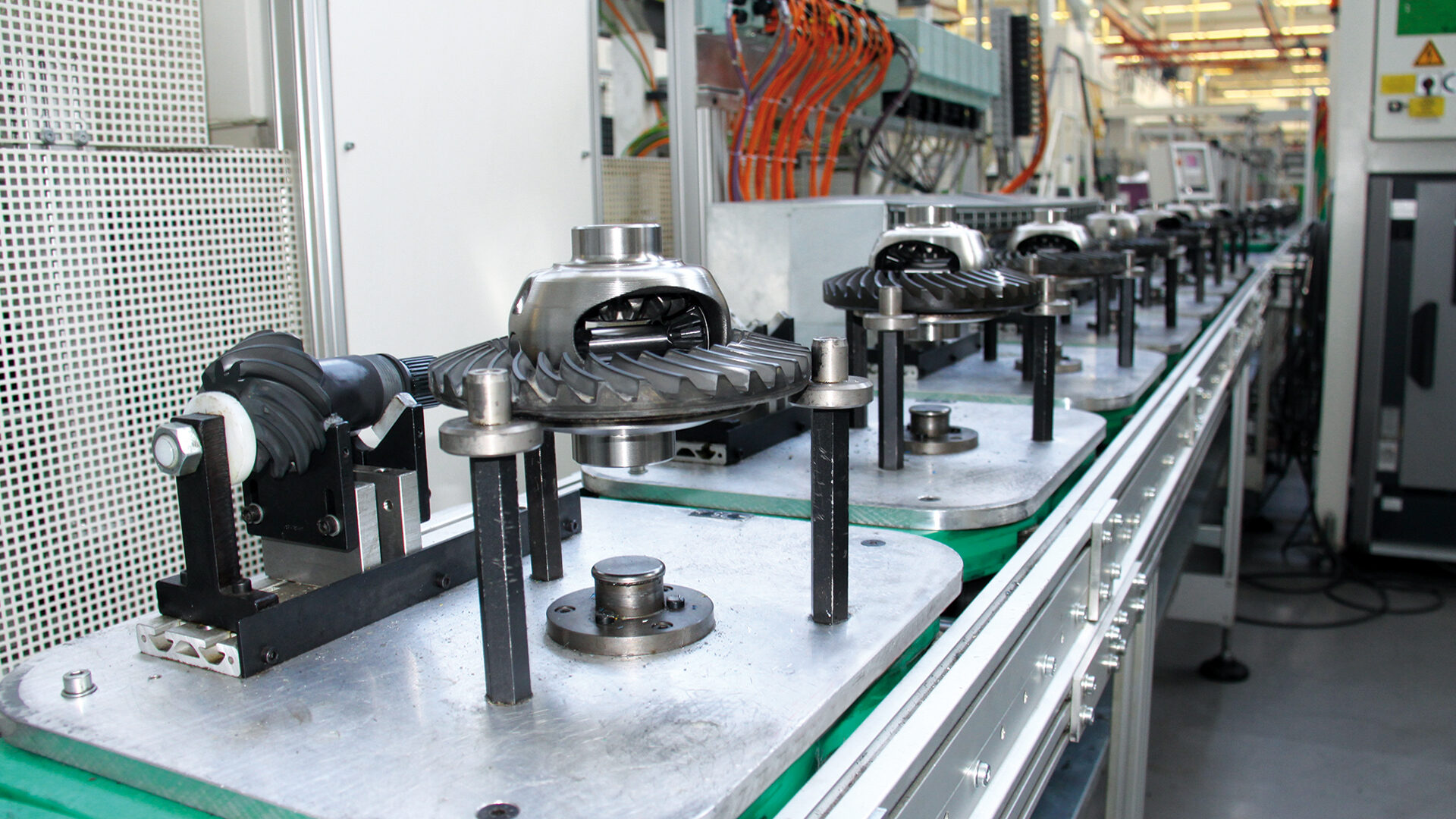

Differentials (OEM solution)

The PROlineUSB and the PROlinePLUS inspection software as an OEM solution for an inspection system for fully automated ultrasonic testing of weld seams on differentials in the production line using immersion technique.
0098983_PROline_Pruefsystem_6Achsenscanner
Play Video

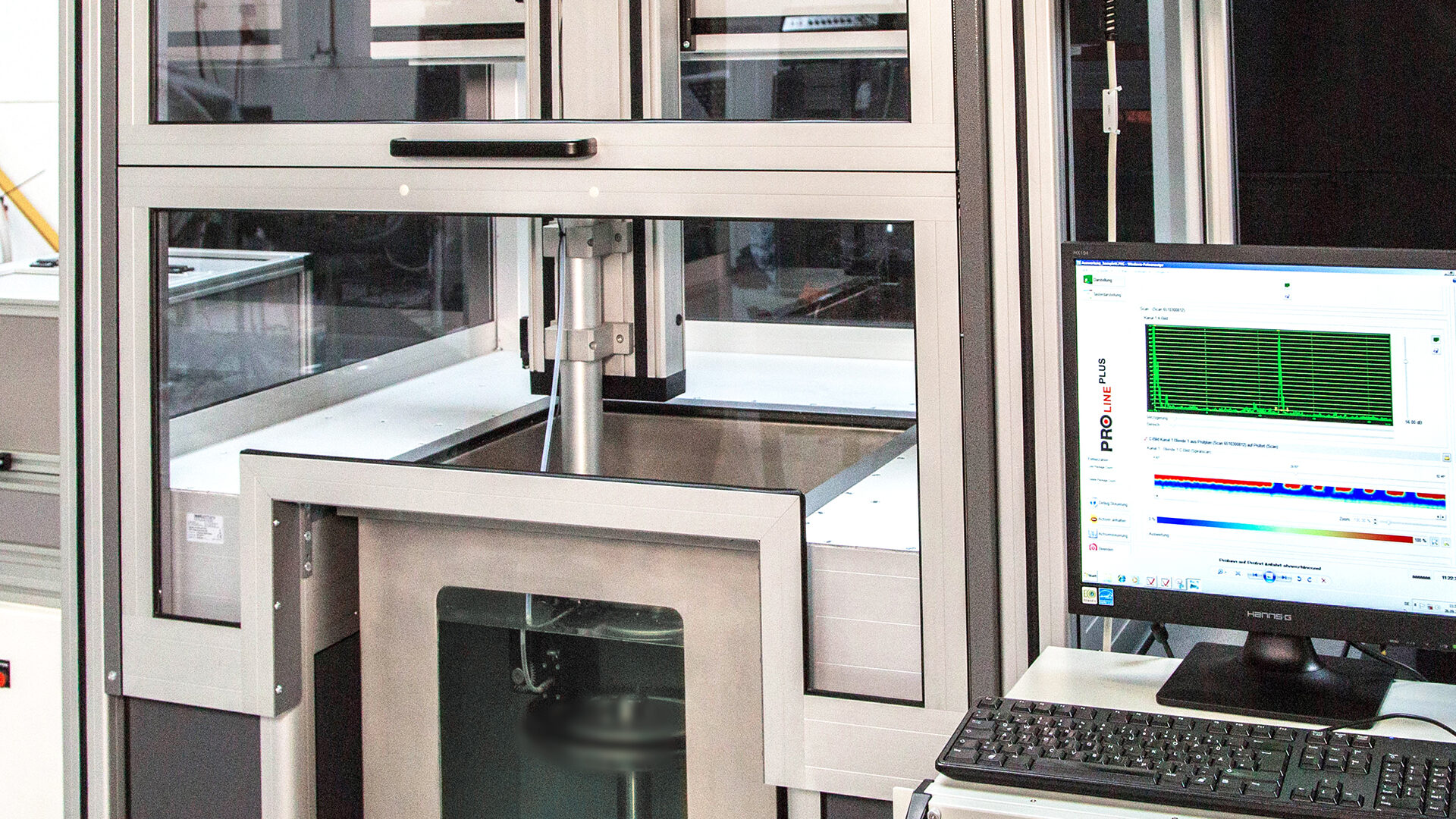

Differentials Offline

The compact PROlineSCAN inspection system has up to 6 axes and is ideally suited for the laboratory and production. One application example is the use of the system for the development of optimal welding parameters for production.
0098983_PROline_Pruefsystem_6Achsenscanner
Play Video

Differentials Offline

The compact PROlineSCAN inspection system has up to 6 axes and is ideally suited for the laboratory and production. One application example is the use of the system for the development of optimal welding parameters for production.
0098985_PROline_Pruefsystem_Druckbehaelter
Play Video

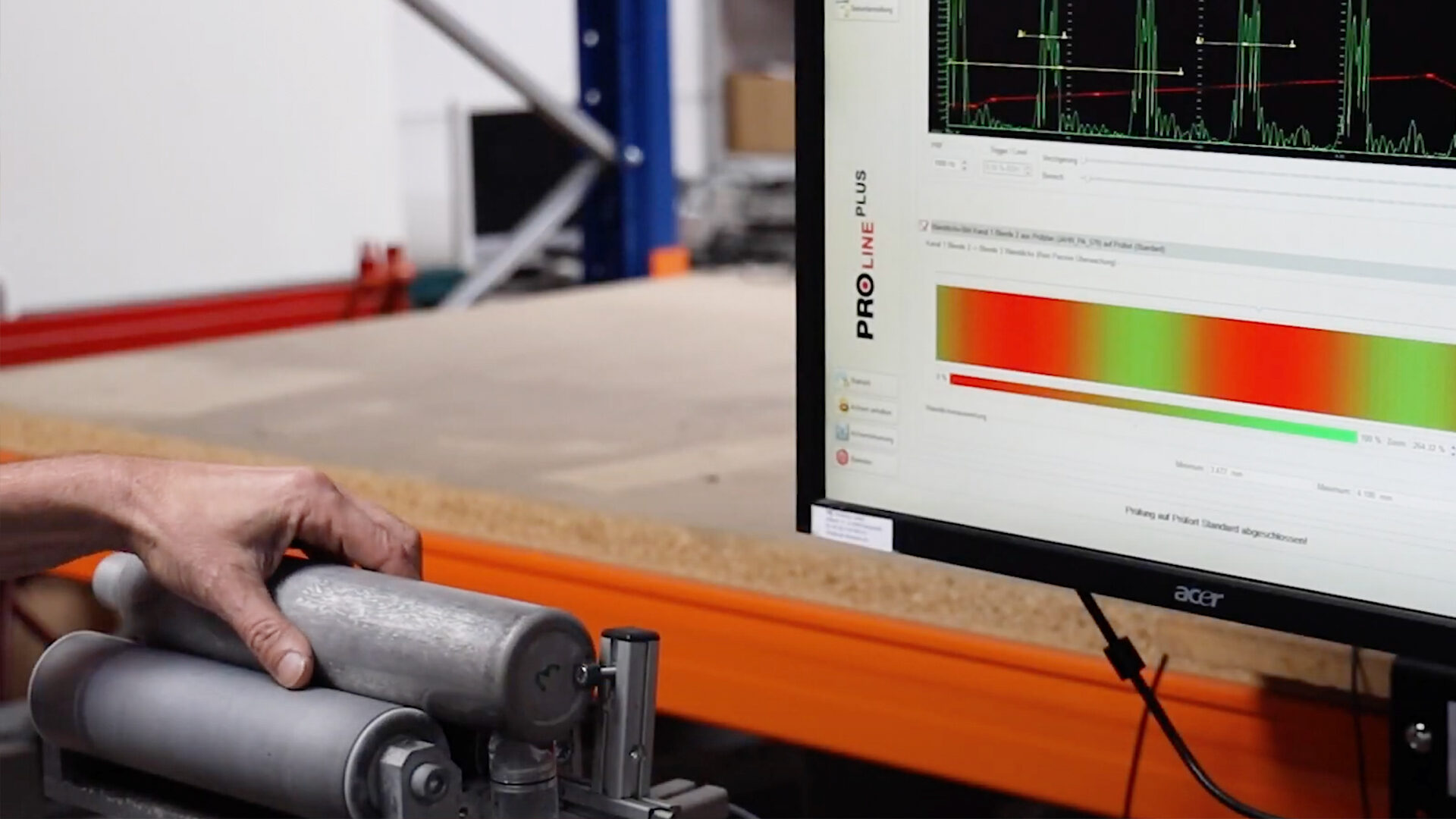

Pressure vessels

The PROline test system for pressure vessels was developed for fast manual testing combined with automated evaluation. The subsequent expansion stage is the partial or full automation of the PROline testing system.
0098985_PROline_Pruefsystem_Druckbehaelter
Play Video

Pressure vessels

The PROline test system for pressure vessels was developed for fast manual testing combined with automated evaluation. The subsequent expansion stage is the partial or full automation of the PROline testing system.
0098984_PROline_Pruefsystem_Gelenkwellen
Play Video

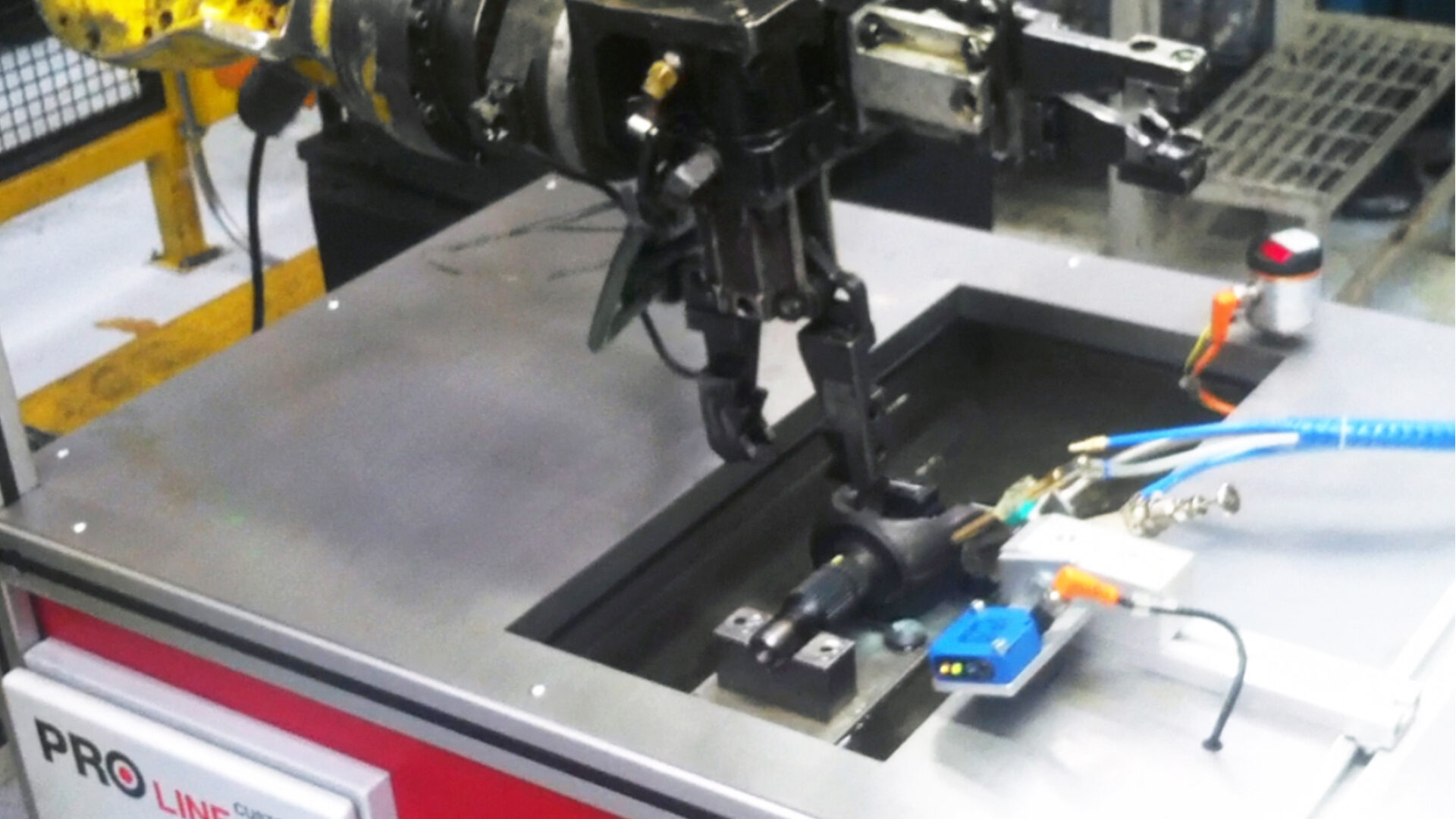

Cardam shafts

This inline inspection system is used to inspect cardan shafts using immersion technique. The component is handled by a customer robot. This enables an automated 100% inspection. The test result is communicated directly to the ERP system.
0098982_PROline_Pruefsystem_Rohre
Play Video

Pipes

This pipe inspection system inspects large ferritic, austenitic, seamless, welded pipes in a single pass for doubles, longitudinal and transverse defects and wall thicknesses. Common standards DIN EN ISO 10893-8, -10 and -12 are thereby complied.
0098978_PROlineBAR_Pruefsystem
Play Video

Rod material

The PROlineBAR inspection system inspects rod material (e.g. piston pins) using immersion technology. By integrating it into the production line, critical quality deviations are now detected in time to avoid complaints and high follow-up costs.
0098980_PROline_Pruefsystem_Lamellentraeger

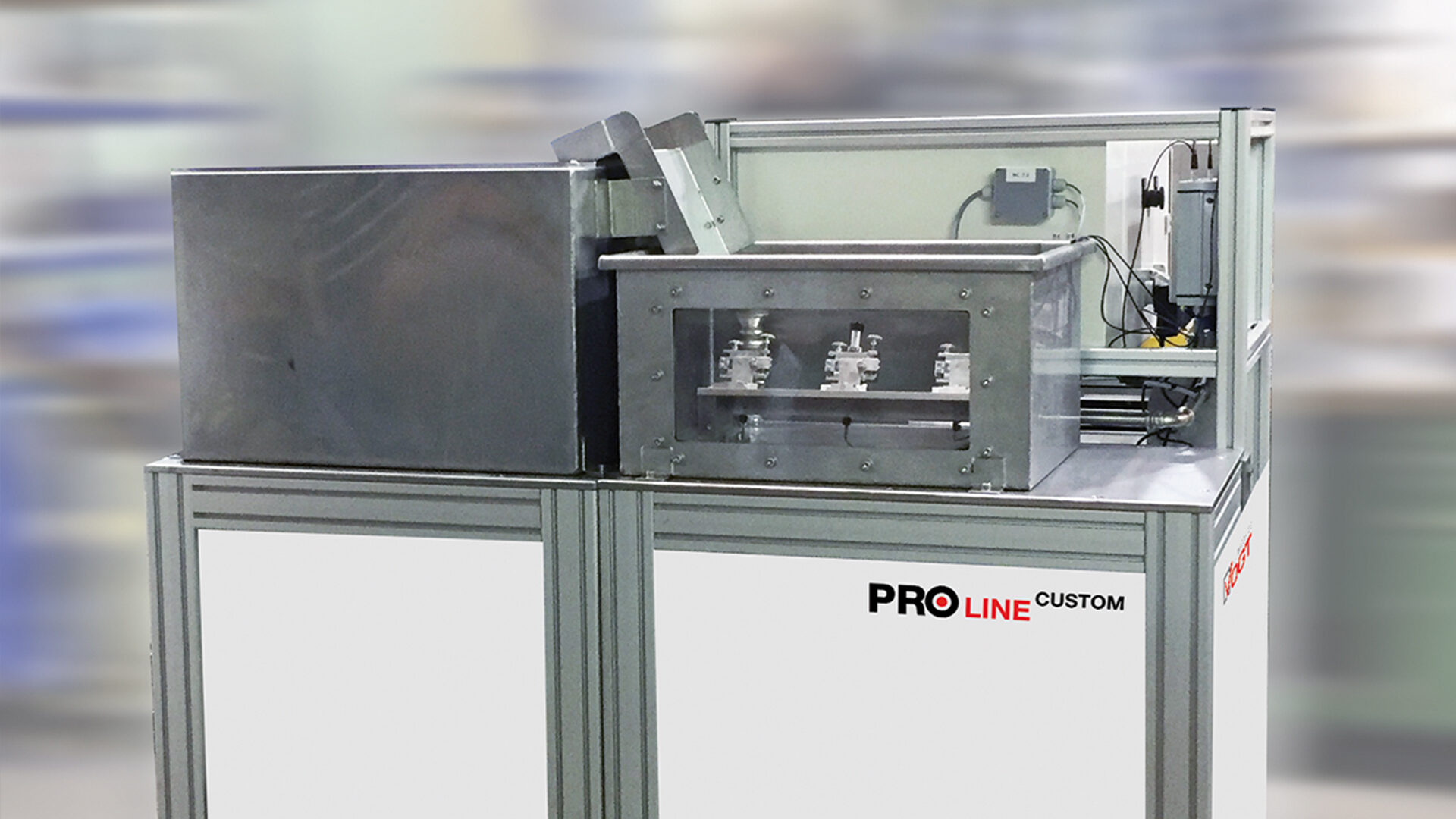

Blade carrier

This PROline system was developed for the fast testing of various components (including blade carriers) in immersion technology. It was directly integrated into the production process in a space-saving manner and automatically loaded by a robot.
0098979_PROline_Pruefsystem_Rotoren
Play Video

Rotors

Inspection system for the robot-supported automated inspection of rotationally symmetrical components from two sides. The system uses phased array ultrasonic technology - an imaging method that allows defects to be detected at first glance.
